In today’s fast-paced industrial world, efficiency and accuracy are no longer optional—they’re essential. Robotic palletizing and pick & place systems are transforming how factories and warehouses handle products, from stacking boxes onto pallets to placing delicate parts into packaging or assembly lines. These solutions not only reduce manual labor but also ensure consistency, safety, and scalability in industries such as food & beverage, logistics, and automotive manufacturing.
How Robotic Palletizing and Pick & Place Systems Work
1. Product Detection and Positioning
Every successful automation process starts with accurate detection. Using photoelectric sensors PZRF4, the system identifies incoming products on the conveyor and ensures correct alignment before handling.
2. Motion Control and Robotics Integration
At the heart of the operation, an FBs-60MCR2-AC PLC synchronizes conveyor speed, robotic arm movement, and gripper actions.
-

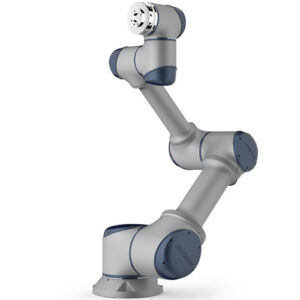

The GCR20-1100 robotic arm provides precise pick & place or palletizing functions.
-
Depending on the product, the system integrates vacuum grippers, pneumatic actuators, or mechanical claws to ensure secure handling.
3. Sorting, Stacking, and Placement
The PLC executes programmed logic to arrange products in optimized palletizing patterns, including layers and orientation. For pick & place applications, the GCR20-1100 moves items directly into trays, boxes, or assembly jigs with high repeatability.
4. Safety and Monitoring
Safety is paramount in modern automation. The GCR20-1100 is equipped with force/torque sensing, allowing immediate collision detection for safe human-robot collaboration—without the need for safety fences. Additionally, operators can monitor operations in real time through HMI Panel PCs from TAICENN or CINCOZE.
5. Data Logging and Optimization
Through RTA gateways, production metrics such as pallets completed, throughput rates, and error tracking are transferred to SCADA or MES systems. This data provides valuable insights to optimize robotic movements, reduce cycle times, and minimize energy consumption.
Key Advantages of Robotic Palletizing and Pick & Place Systems
-
High Productivity – 24/7 operation reduces bottlenecks and increases throughput.
-
Precision and Consistency – Robotic arms ensure perfect stacking and product alignment.
-
Labor Cost Reduction – Minimizes repetitive manual tasks, reducing fatigue and workplace injuries.
-
Flexibility – Easily adapts to different product sizes, shapes, and palletizing patterns.
-
Traceability and Control – Digital logging ensures compliance with audits and customer specifications.
-
Scalability – The system can expand with additional robots, conveyors, or grippers as production grows.
Conclusion
Robotic palletizing and pick & place systems represent a strategic investment for industries seeking greater efficiency, safety, and long-term scalability. By combining advanced sensors, powerful PLCs, collaborative robots, and real-time data integration, these systems deliver unmatched reliability and flexibility in modern manufacturing environments.
Companies that embrace this automation technology not only reduce costs but also secure a competitive advantage in an increasingly demanding market.
