IP65 vs IP66 Front Panel PCs: Engineering for Washdown Reliability

Water ingress through the front bezel of an industrial Panel PC leads to immediate capacitive touch drift, internal PCB corrosion, and costly unscheduled line stoppages. In washdown environments, selecting the proper ingress protection (IP) rating for the operator interface determines whether a unit survives standard cleaning cycles or fails prematurely due to gasket breakdown.

System integrators and plant engineers must balance operational durability with system cost. Over-specifying enclosure ratings inflates bill-of-materials (BOM) costs, while under-specifying creates recurring maintenance overhead. Under the IEC 60529 standard, the boundary between an IP65 and an IP66 front bezel lies in water-jet volume, nozzle diameter, and dynamic surface pressure.

Technical Breakdown: IEC 60529 Test Parameters

Both IP65 and IP66 ratings share the first digit 6, designating complete protection against dust and airborne particulate ingress under negative internal pressure. The operational distinction is defined entirely by the second digit, which specifies liquid ingress resistance under mechanical water projection.

IEC 60529 Water Ingress Comparison
├── IP65: 6.3 mm nozzle | 12.5 L/min | 30 kPa pressure  | Low-pressure washdown
└── IP66: 12.5 mm nozzle | 100 L/min  | 100 kPa pressure | Heavy spray & industrial washdown

The difference between these ratings is not a minor increment; it represents an eight-fold increase in water volume and more than triple the stream pressure acting against the front seal:

• IP65 (Standard Water Jets): Tested using a 6.3 mm nozzle delivering 12.5 L/min of water at a pressure of 30 kPa from a distance of 2.5 to 3.0 meters for a minimum of 3 minutes. This certifies the front panel against rain, low-pressure hose washdowns, splash zones, and non-pressurized factory mist.

• IP66 (Powerful Water Jets): Tested using a 12.5 mm nozzle discharging 100 L/min at a pressure of 100 kPa from a distance of 2.5 to 3.0 meters for a minimum of 3 minutes. The front gasket and display bonding must withstand substantial dynamic hydrodynamic force without perimeter seal deflection.

Neither IP65 nor IP66 covers submersion. If the installation environment exposes the HMI to pooling liquid or continuous immersion, specifications must shift to IP67 or IP68.

Evaluating the Operational Environment

Specifying between IP65 and IP66 front bezels requires evaluating three primary mechanical and environmental variables on the plant floor.

1. Cleaning Protocols and Hydrodynamic Force

Standard manufacturing facilities using low-pressure facility hoses for basic dust cleanup typically require only IP65. Conversely, production floors requiring pressurized, high-volume washdown cycles—common in food, beverage, and chemical batching—require IP66 to prevent washdown streams from breaching the bezel-to-cutout interface.

2. Environmental and Chemical Exposure

Outdoor HMIs on marine decks, port logistics terminals, and open-pit mining operations face severe wind-driven rain and heavy spray. In these locations, standard IP65 seals degrade faster due to cyclic wind loads and water pressure fluctuations. An IP66 front bezel ensures continuous gasket compression and prevents moisture migration behind the touch sensor.

3. Maintenance Cost vs. Initial Hardware Delta

Deploying an IP65 Panel PC into an aggressive washdown zone to reduce initial procurement costs results in elevated total cost of ownership (TCO). Moisture intrusion typically damages the internal motherboard, power supply, and backlight inverter, requiring complete unit replacement and halting production lines. If an ingress-related failure causes even two hours of plant downtime, the cost of that failure far exceeds the price delta of an IP66-rated front panel.

Engineering Comparison: Front IP65 vs. Front IP66

Modular Architecture and Front-Panel Protection

Specifying a rugged front panel historically required custom NEMA-rated outer enclosures or bulky secondary protective glass doors, which limit operator responsiveness and complicate cabinet cutouts. Modern industrial computing addresses this via modular designs that integrate true IP66 front protection directly into the HMI chassis.

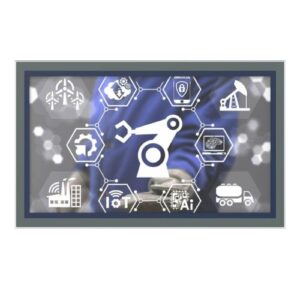

Manufacturers such as Taicenn utilize modular industrial Panel PCs and touch monitors designed with native front-panel IP66 compliance across all standard display sizes, from 10.1 inches to 23.8 inches. This architecture uses an extruded aluminum front bezel paired with high-grade industrial gaskets to ensure an impermeable seal against standard control cabinet cutouts.

Key technical advantages of this modular design include:

• Identical Cutout Dimensions: Engineering teams can switch between Projected Capacitive (PCAP) multi-touch and 5-wire analog resistive touch interfaces without altering sheet metal cutout drawings.

• Scalable Compute Engines: Enclosures support computing hardware ranging from low-power Intel Celeron and Elkhart Lake architectures up to high-throughput Intel Core Ultra processors for machine vision and edge edge-computing algorithms.

• Gasket Integrity: High-elasticity silicone sealing gaskets resist degradation from standard alkaline cleaning agents and repeated thermal cycling.

Selecting the proper ingress rating requires aligning IEC test metrics with the actual physical demands of the plant floor. While IP65 satisfies general manufacturing assembly and light-duty enclosure standards, an IP66 front rating provides the necessary mechanical protection for aggressive washdown protocols, preventing fluid ingress and securing long-term operational uptime.

For application support, panel cutout drawings, or detailed specification sheets for front IP66 industrial Panel PCs, contact the engineering team at www.logicbus.com to consult directly with an automation specialist.
