Darveen today announced the launch of the TVP-310 Railway Touch Panel PC, powered by the Intel® Atom® x7433RE processor. EN 50155 certified, the TVP-310 delivers reliable computing performance for demanding railway applications, including driver cab HMIs, TCMS, and intelligent onboard systems.
Intel® Atom® x7433RE Platform Delivers Efficient Computing for Smart Rail
The TVP-310 is powered by the industrial-grade Intel® Atom® x7433RE processor, delivering efficient computing performance with a 9W TDP. With turbo frequencies of up to 3.4 GHz and DDR5 memory support, it enables fast and reliable data processing while reducing power consumption and thermal output for railway HMIs, TCMS (Train Control and Management System), and lightweight edge AI applications.
The system also features a 10.4-inch industrial-grade touchscreen with 1,000 nits of brightness, ensuring excellent visibility even under direct sunlight inside train cabs. In addition, a UIC 612-01-compliant physical keyboard preserves familiar operating procedures for train operators, helping reduce operational errors and improve driving safety.
Rich I/O and M12 Connectivity for Reliable Data Communication
Designed for seamless onboard integration, the TVP-310 offers a comprehensive range of I/O interfaces, including Gigabit Ethernet, USB, COM, GPIO, and CAN Bus, enabling connectivity with onboard sensors, control modules, and peripheral devices for real-time data acquisition and communication. Industrial-grade M12 connectors ensure secure and reliable connections, minimizing the risk of cable disconnection caused by vibration and continuous train movement. The system also supports Wi-Fi 6E, Bluetooth 5.3, 4G/5G cellular connectivity, and GNSS positioning, providing reliable wireless communication for high-speed mobile environments.
Rich I/O and M12 Connectivity for Reliable Data Communication
Designed for seamless onboard integration, the TVP-310 offers a comprehensive range of I/O interfaces, including Gigabit Ethernet, USB, COM, GPIO, and CAN Bus, enabling connectivity with onboard sensors, control modules, and peripheral devices for real-time data acquisition and communication. Industrial-grade M12 connectors ensure secure and reliable connections, minimizing the risk of cable disconnection caused by vibration and continuous train movement. The system also supports Wi-Fi 6E, Bluetooth 5.3, 4G/5G cellular connectivity, and GNSS positioning, providing reliable wireless communication for high-speed mobile environments.
Rugged Design Built for Harsh Railway Environments
Designed for demanding railway environments involving prolonged vibration, shock, and power fluctuations, the TVP-310 is EN 50155 certified, meeting the stringent requirements for durability and reliability in railway electronic equipment. It complies with MIL-STD-810H standards for vibration and shock resistance, while supporting a wide operating temperature range from -40°C to 70°C to ensure stable performance in harsh operating conditions and extreme climates.
The TVP-310 also supports a wide voltage input range of 9–36 VDC (optional 43–160 VDC), making it compatible with various onboard power systems. The front panel features IP65-rated protection against dust and water ingress, ensuring reliable operation and reduced maintenance.
Designed for Next-Generation Railway Applications

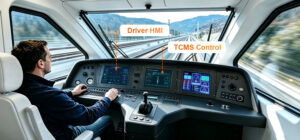

With its high-performance computing capabilities, rugged railway-certified design, and extensive connectivity, the TVP-310 is an ideal solution for metro, high-speed rail, light rail, and other intelligent transportation applications. It supports a wide range of onboard systems, including driver cab HMIs, Train Control and Management Systems (TCMS), and edge computing for intelligent trains.
Learn more about the Darveen TVP-310, please clecik here.
